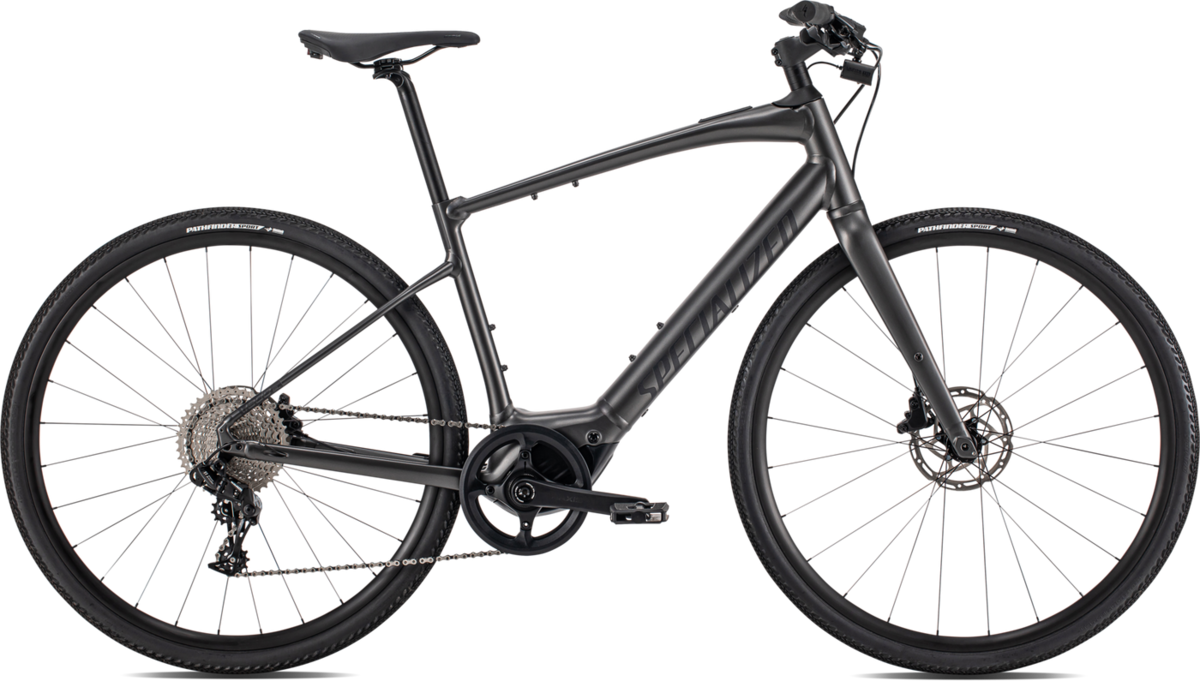

Specialized Turbo Vado SL 4.0

Specialized Turbo Vado SL 4.0
  • Color: Smoke/Black Reflective
$3,500.00
Color: Smoke/Black Reflective
Size: Select size
Wheel Size: 700c
Please select options Unavailable

Details

Meet the Vado SL. This super-light e-bike was designed to take on anything from daily commutes through urban landscapes to clocking even faster workouts. Need to carry your bike? No sweat. Weighing 40% less than the full-power Vado, there’s no other electric bike out there with ride quality, range, and power like this. All you need to do is get on and go.

The Vado SL comes equipped with everything you need to start riding right away. First, the extra-bright, built-in lights give you higher visibility in low-light areas. Next, the MasterMind Turbo Control Unit (TCU) makes it easy to view ride info on the go. The Pathfinder tires roll fast on or off the pavement with plenty of grip, and the Vado SL's featherweight status also makes it perfect for city commuting and offers far more than ride quality — it means you can hang it on a wall or car rack. And it makes public transportation a breeze.

So whether you're going fast or far or both, the Vado SL provides the confidence to do it all at a fraction of the weight.

LIGHT WEIGHT: You’ll be blown away by how easy it is to lift your bike on to a rack, carry it up stairs, or ride nimbly around town, thanks to the category-leading light-weight of the Turbo SL technology, optimised frame materials, design, and specification.

COMFORTABLE AND CONFIDENT: Body position and handling are optimized to deliver unsurpassed riding comfort, confidence, and control. Powerful hydraulic disc brakes reign in your speed, while larger tires provide maximum traction for turning and stopping.

TURBO SL: The heart of the Vado is its Turbo SL technology, the advanced and integrated electric bike system that delivers an unequaled combination of light-weight, natural feel, anti-theft functions, training tips, a full-function bike computer, ride anywhere range, and more.

The speed limit at which the motor will stop supporting may vary significantly by region and is based on local requirements. It may also affect range: a higher speed limit may result in less range.

- Long-Range - Fully integrated Specialized 320Wh downtube battery w/optional Range Extender compatibility for up to 80 miles (130 km) or 6 hours (eco mode) or up to 120 miles (200 km) or 9 hours w/ range extender (eco mode).
- Specialized SL 1.1 custom lightweight motor, peak 240W / 35Nm, 2x you rider amplification (180% assistance), assist up to 28mph.
- Premium lightweight E5 Aluminum frame.
- Clean internal cable routing, fender/rack mounts, and reflective graphics.
- Premium hydraulic disc brakes for maximum stopping power.
- Bright, integrated front and rear lighting to see and be seen.
- 11-speed SRAM NX shifting for reliable performance for the long haul.

Frame SizeSM
Crank Length 170mm 172.5mm
Handlebar Width 680mm 680mm
Stem Length 60mm 75mm
Saddle Width 155mm 155mm
Seatpost Length 350mm 350mm
Head-Tube Length 130mm 161.5mm
Head-Tube Angle 70mm 70.5mm
Trail 78mm 75mm
Chain-Stay Length 445mm 445mm
Seat-Tube Angle 73.5mm 73.5mm
Stack 542mm 574mm
Bike Stand-Over Height 791mm 811mm
B-B Drop 70mm 70mm
Top-Tube Length (horizontal) 558mm 589mm
Fork Rake/Offset 50mm 50mm
B-B Height 291mm 291mm
Wheelbase 1062mm 1091mm
Reach 397mm 419mm
Front-Center 626mm 655mm
Seat-Tube Length 415mm 446.5mm
Fork Length (full) 390mm 390mm
SizeInchesCM
S 5'1" - 5'5" 158 - 165
M 5'5" - 5'10" 165 - 178

Specs

Frame E5 Aluminum, bottom bracket motor mount, fully integrated downtube battery, internal cable routing, fender and front rack mounts, Smooth Welds
Fork Rigid full aluminum disc, Boost™ 12x110mm, front- rack-compatible
Rims 700C disc, 22mm rim depth, 21mm internal width
Hubs Front: Specialized alloy front hub disc, sealed cartridge bearings, 12x110mm, Center Lock™, 24h Rear: Specialized alloy rear hub disc, Center Lock™, sealed cartridge bearings, 12x148mm, 28h
Spokes DT Swiss Industry
Tires Specialized Pathfinder Sport, 700x38c
Crankset Praxis, Forged alloy M30, custom offset
Chainrings Praxis, 44T, 104BCD
Shifters SRAM NX, 11-speed
Rear Derailleur SRAM NX, 11-speed
Cassette/Freewheel SUNRACE, CSMS7, 11-42t, 11-speed
Chain KMC e11S, 11-speed w/ Missing Link™
Brakes Tektro HD-R290, hydraulic disc, 160mm
Handlebars Specialized, alloy, 9-degree backsweep, 15mm rise, 31.8mm
Tape/Grips Specialized Body Geometry Contour, lock-on
Stem Specialized Stealth Stem, alloy, 14 deg, 31.8mm, integrated TCD mount
Seatpost Specialized, alloy, dual-bolt, 25mm offset, 27.2mm
Saddle Bridge Sport, Steel rails, 155mm
Pedals Specialized Commuter w/ grip tape & reflectors
Accessories & Extras Lezyne Ebike Hecto STVZO E65, 210Lumens, 12V, Simple bell, Specialized integrated saddle mount, LED Technology, 12V
Motor Specialized SL 1.1, custom lightweight motor
Battery Specialized SL1-320, fully integrated, 320Wh
Controller/Display Specialized TCU, 10-LED State of charge, 3-LED Ride Mode display, ANT+/Bluetooth®, w/Handlebar remote
Charger Custom charger, 48V System w/ SL system charger plug

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Smoke/Black Reflective / Small / 700c 196625156397 93922-5102U 210000033357
Smoke/Black Reflective / Medium / 700c 196625159039 93922-5103U 210000033371
